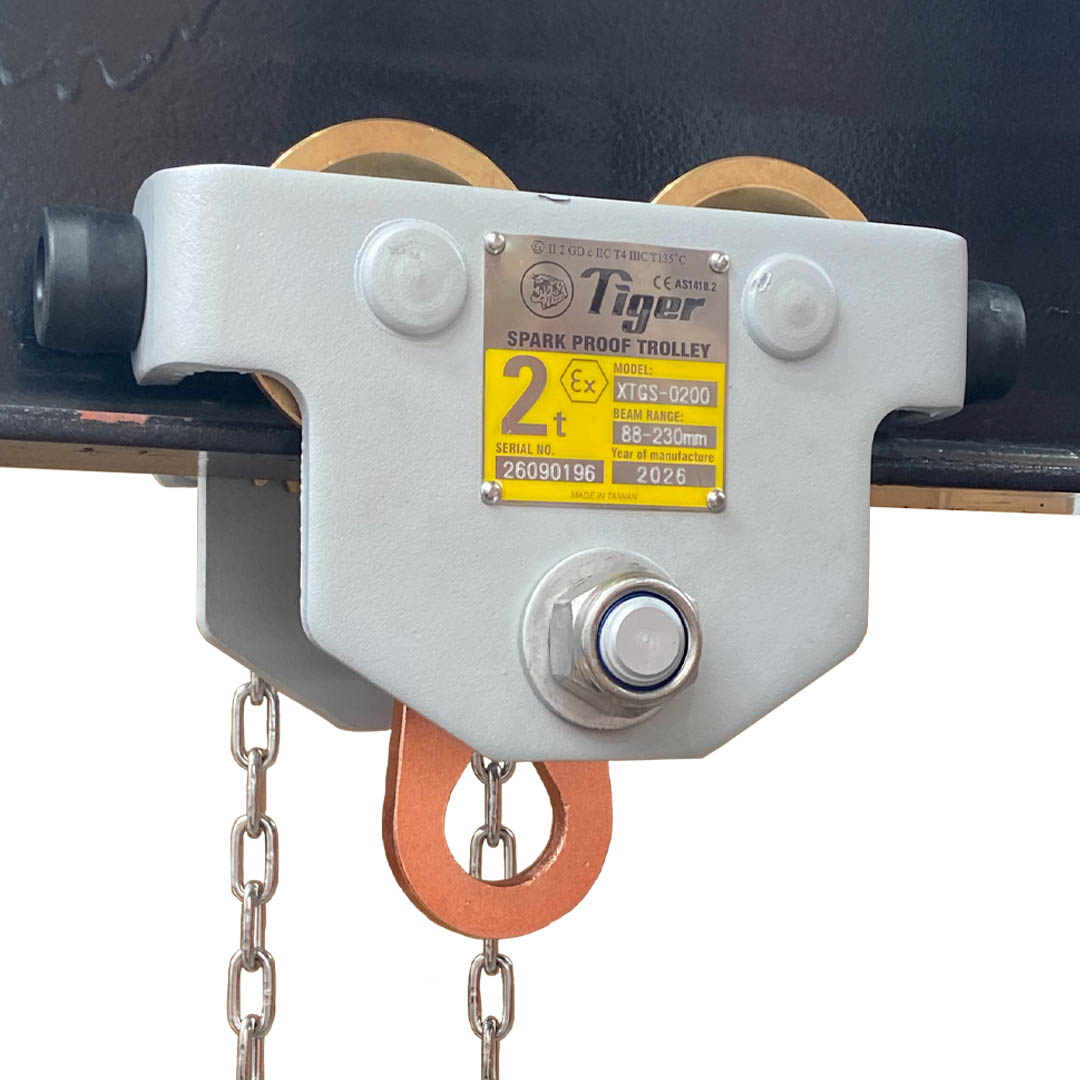

Spark resistant trolley

In many areas of industry, plants are operated with potentially explosive atmospheres. Due to the very high risk to personal and other assets, extremely strict guidelines and technical requirements are in place in explosive zones. Tiger Spark Resistant products are manufactured in accordance with ATEX Directive 94/9/EC and the Machinery Directive 2006/42/EC. Our products are lightweight and durable with a proven track record. Atex marking: Ex II 2 GD c IIC IIIC T4. Suitable for gas and dust hazardous areas: Zone 1 & 2 (gas) and Zone 21 & 22 9 (dust).

Plain and geared trolleys available.

main features

• Category II – high safety - Certification: Ex II 2 GD c IIC IIIC T4

• Manufactured in accordance with ATEX Directive 94/9/EC and Machinery Directive 2006/42/EC

• Developed for the use in potentially explosive atmospheres (ATEX zones).

• Special coated units

• Solid bronze trolley wheels

• Available as a combination unit with chain block

Details

Trolleys (using Tiger corrosion protected trolleys)

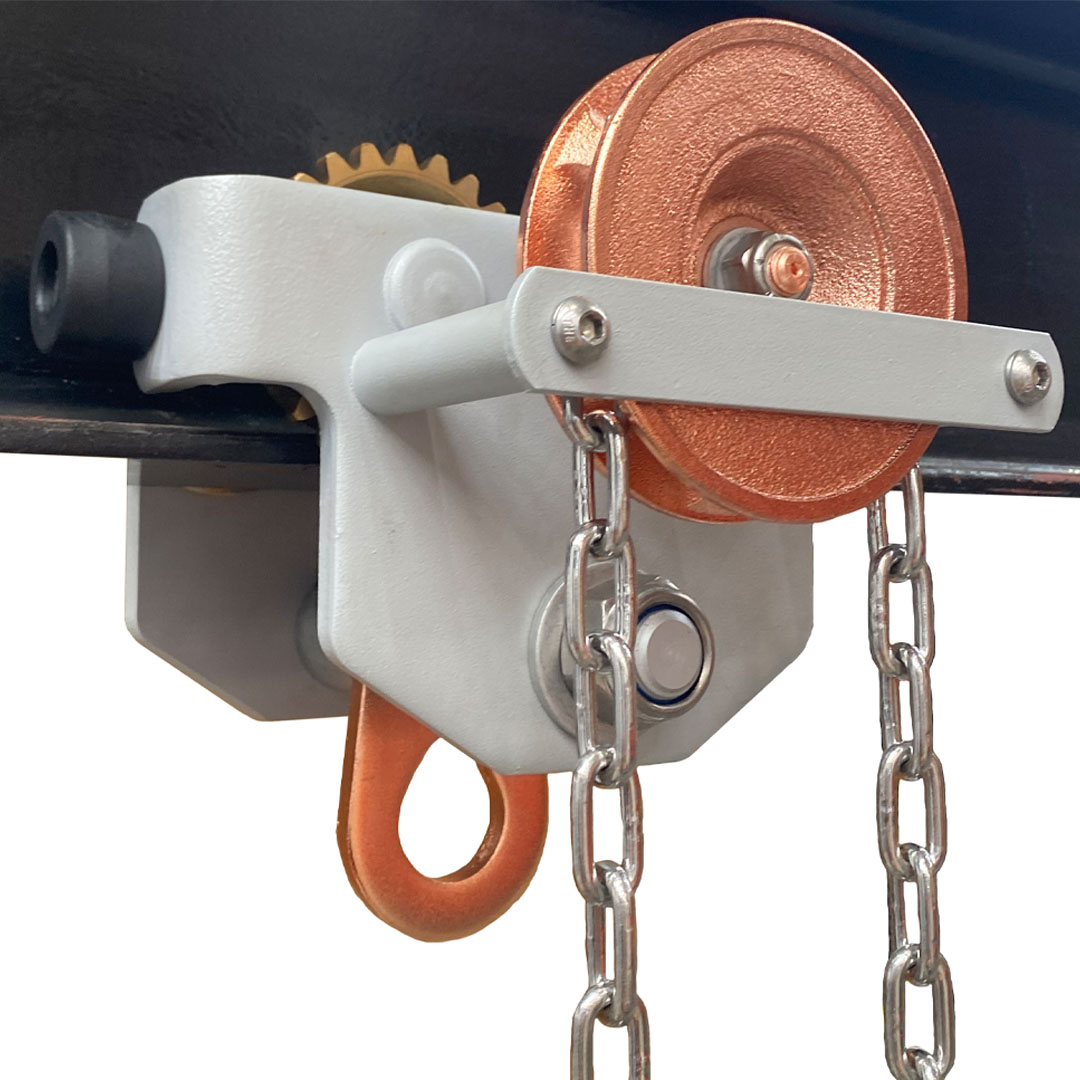

Plain or geared trolleys available

  • Solid bronze trolley wheels
  • Rubber buffers for trolleys
  • Copper plated hand wheel (geared trolley) and hanging plate
  • Special corrosion protected coated body
  • Combination block and trolley units available

Optional

  • Beam locking device

Certification:

Under the ATEX Directive 94/9/EC , equipment for areas with an explosion hazard are assigned to groups, categories and temperature classes. Our products are assigned as follows:



Ex II 2 GD c IIC IIIC T4

II

2

GD

c

IIC

IIIC

T4



















T4

Temperature Class: Max 135°C















IIIC

Groups of Dust: Protected for group IIIC which   includes groups IIIA & IIIB















IIC

Gas Explosion Group: Protected for group   IIC which includes groups IIA & IIB















c

Protection type: Design safety















GD

Ex Atmosphere: Gas and Dust















2

Category: High Safety















II

Equipment   Group: surface industries



It is the responsibility of the user to identify which explosion proof classification is required, not the hoist manufacturer or supplier.
